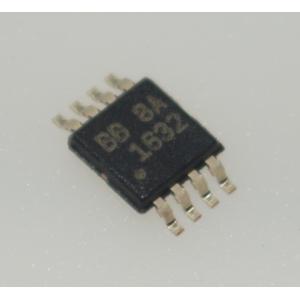

OPA1632DGNR Fully-Differential I/O High 2.4GHz Gain Bandwidth Ultra-Low Noise & THD High 180mA Output Wide Supply Range RF Shielding Industry-Standard Package
Features
• Excellent sound quality
• Ultra low distortion: 0.000028%
• Low noise: 1.25 nV/√Hz
• High speed:
–Slew rate: 72 V/μs
–Gain bandwidth product: 180 MHz
• Fully differential architecture:
–Balanced input and output converts single ended input to balanced differential output
• Wide supply range: ±2.5 V to ±15 V
• Shutdown current: 0.85 mA (VS = ± 5 V)
• Temperature range: –40°C to +85°C
Applications
• Professional audio mixer or control surface
• Professional microphones and wireless systems
• Professional speaker systems
• Professional audio amplifier
• Soundbar
• Turntable
• Professional video camera
• Guitar and other instrument amplifier
• Data acquisition (DAQ)
Description
The OPA1632 is a fully differential amplifier (FDA) designed to drive high-performance audio analog-to digital converters (ADCs) or as a predriver for class-D amplifiers.
The OPA1632 delivers excellent audio quality, very low noise, large output voltage swing, and high current drive. The OPA1632 has an excellent gain bandwidth of 180 MHz, and a very fast slew rate of 72 V/μs that helps to produce exceptionally low distortion. A very low input voltage noise of 1.25 nV/√Hz further provides maximum signal-to noise ratio and dynamic range.
The flexibility of the fully differential architecture allows for easy implementation of a single-ended to fully differential output conversion. Differential output reduces even-order harmonics and minimizes common-mode noise interference. The OPA1632 provides excellent performance when used to drive high-performance audio ADCs such as the PCM1804. A shutdown feature is included to save power when the device is not in use.
The OPA1632 is characterized to operate from 40°C to +85°C and is available in an SO-8 package and a thermally-enhanced HVSSOP-8 PowerPAD™ integrated circuit package.
INFORMATION
| Category | | |
| Mfr | | |
| Series | - | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Amplifier Type | | |
| Number of Circuits | 1 | |
| Output Type | Differential | |
| Slew Rate | 50V/µs | |
| -3db Bandwidth | 180 MHz | |
| Current - Input Bias | 2 µA | |
| Voltage - Input Offset | 500 µV | |
| Current - Supply | 14mA | |
| Current - Output / Channel | 85 mA | |
| Voltage - Supply Span (Min) | 5 V | |
| Voltage - Supply Span (Max) | 32 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | |
| Supplier Device Package | 8-HVSSOP | |
| Base Product Number |
