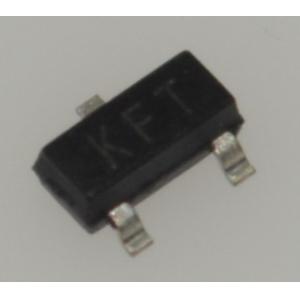

SSM3K361R,LF N-Channel 20V 3A MOSFET with Ultra-Low 40mΩ RDS(on) SOT-23 Package High Power Density Superior Efficiency Fast Switching and Logic Level Control for Compact Designs
Features
AEC-Q101 qualified (Please see the orderable part number list)
175℃ MOSFET
4.5 V drive
Low drain-source on-resistance :
RDS(ON) = 65 mΩ (typ.) (@VGS = 4.5 V)
RDS(ON) = 51 mΩ (typ.) (@VGS = 10 V)
Applications
• Power Management Switches
• DC-DC Converters
Description
SSM3K361R,LF is a N-channel enhancement mode field effect transistor (MOSFET) designed in a compact SOT-23 surface mount package. It is engineered to provide high efficiency and power density in a minimal board space, making it an ideal solution for a wide range of power management and switching applications in portable and space-constrained electronic devices.
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| FET Type | | |
| Technology | | |
| Drain to Source Voltage (Vdss) | 100 V | |
| Current - Continuous Drain (Id) @ 25°C | | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| Rds On (Max) @ Id, Vgs | 69mOhm @ 2A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA | |
| Gate Charge (Qg) (Max) @ Vgs | 3.2 nC @ 4.5 V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 15 V | |
| FET Feature | - | |
| Power Dissipation (Max) | 1.2W (Ta) | |
| Operating Temperature | 175°C | |
| Grade | - | |
| Qualification | - | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-23F | |
| Package / Case | | |
| Base Product Number |
Drawing
