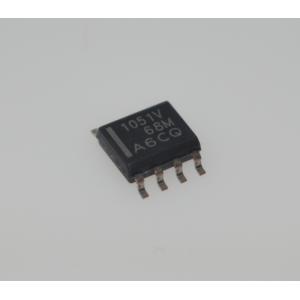

TCAN1051VDQ1 AEC-Q100 CAN FD Transceiver High-Speed Low-Power with Sleep Mode Wake-Up & Robust Protection for SAE J2962-2 Compliant Automotive Networks
Features
• AEC Q100: Qualified for automotive applications
– Temperature grade 1: -40°C to 125°C, TA
– HBM classification level: ±16 kV
– CDM classification level ±1500 V
• Meets the ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
• 'Turbo' CAN:
– All devices support classic CAN and 2 Mbps CAN FD (flexible data rate) and "G" options support 5 Mbps
– Short and symmetrical propagation delay times and fast loop times for enhanced timing margin
– Higher data rates in loaded CAN networks
• EMC performance: supports SAE J2962-2 and IEC 62228-3 (up to 500 kbps) without common mode choke
• I/O Voltage range supports 3.3 V and 5 V MCUs
• Ideal passive behavior when unpowered
– Bus and logic terminals are high impedance (no load)
– Power up/down with glitch free operation on bus and RXD output
• Protection features
– IEC ESD protection up to ±15 kV
– Bus Fault protection: ±58 V (non-H variants) and ±70 V (H variants)
– Undervoltage protection on VCC and VIO (V variants only) supply terminals
– Driver dominant time out (TXD DTO) - Data rates down to 10 kbps
– Thermal shutdown protection (TSD)
• Receiver common mode input voltage: ±30 V
• Typical loop delay: 110 ns
• Junction temperatures from –55°C to 150°C
• Available in SOIC(8) package and leadless VSON(8) Package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI) capability
Applications
• Automotive and Transportation
• All devices support highly loaded CAN networks
• Heavy machinery ISOBUS applications ISO 11783
Description
This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.
INFORMATION
| Category | | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | Transceiver | |
| Protocol | CANbus | |
| Number of Drivers/Receivers | 1/1 | |
| Duplex | Half | |
| Receiver Hysteresis | 120 mV | |
| Data Rate | 2Mbps | |
| Voltage - Supply | 4.5V ~ 5.5V | |
| Operating Temperature | -55°C ~ 125°C | |
| Grade | Automotive | |
| Qualification | AEC-Q100 | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SOIC | |
| Base Product Number |
