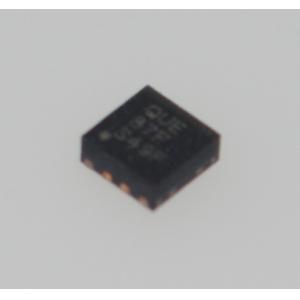

TPS62170DSGR Step-Down Converter 3-17V Input 1.2A Output Up to 95% Efficiency 1.8V to 6V Adjustable Output 17μA Low Quiescent Current Power Save Mode 100% Duty Cycle Small 2.0x2.0mm WSON Package
Features
• DCS-Control™Topology
• InputVoltageRangefrom3Vto17V
• Upto500-mAOutputCurrent
• AdjustableOutputVoltagefrom0.9Vto6V
• FixedOutputVoltageVersions
• SeamlessPowerSaveModeTransition
• Typically17-µAQuiescentCurrent
• PowerGoodOutput
• 100%DutyCycleMode
• ShortCircuitProtection
• OverTemperatureProtection
• PintoPinCompatiblewithTPS62160and TPS62125
• Availableina2-mm×2-mm8-PinWSON Package
Applications
• Standard12-VRailSupplies
• POLSupplyfromSingleorMultipleLi-IonBattery
• LDOReplacement
• EmbeddedSystems
• DigitalStillCamera,Video
• MobilePCs,Tablet-PCs,Modems
Description
The TPS6217x device family are easy to use synchronousstep-downDC-DCconvertersoptimized for applications with high power density. A high switchingfrequencyof typically2.25MHzallows the use of small inductors and provides fast transient responseaswellashighoutputvoltageaccuracyby utilizationof theDCS-Control™topology.
With itswideoperating input voltagerangeof3Vto 17 V, the devices are ideally suited for systems poweredfromeitheraLi-Ionorotherbatteryaswell asfrom12-Vintermediatepower rails. Itsupportsup to0.5-Acontinuousoutputcurrentatoutputvoltages between0.9Vand6V(with100%dutycyclemode).
Powersequencingisalsopossiblebyconfiguringthe enableandopen-drainpowergoodpins.
In power savemode, the devices showquiescent currentofabout17μAfromVIN.Powersavemode, enteredautomaticallyandseamlessly if the load is small,maintainshighefficiencyover theentire load range. In shutdownmode, thedevice is turnedoff andshutdowncurrentconsumptionislessthan2μA.
Thedevice, available inadjustableand fixedoutput voltageversions, ispackaged ina2-mm×2-mm8 pinWSONpackage(DSG).
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | | |
| Output Type | | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 17V | |
| Voltage - Output (Min/Fixed) | | |
| Voltage - Output (Max) | 6V | |
| Current - Output | | |
| Frequency - Switching | 2.25MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | | |
| Supplier Device Package | 8-WSON (2x2) | |
| Base Product Number |
