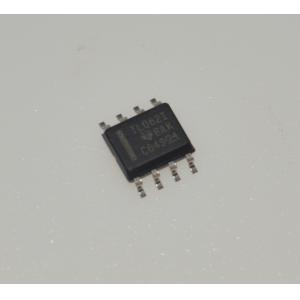

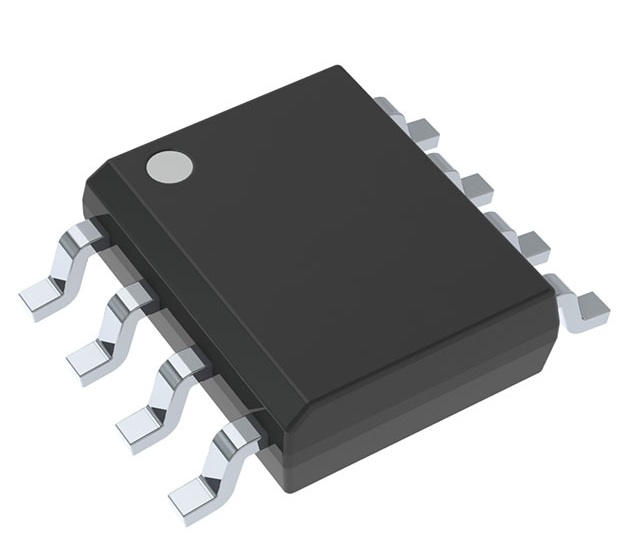

TL062IDR Low-Power JFET-Input Op Amp with 1MHz Bandwidth 3.5V/µs Slew Rate ±18V Supply 200pA Bias Current High-Z Input 0°C to +70°C Range and SOIC-8 Package for Precision Circuits
Features
• Very low power consumption
• Typical supply current: 200 μA (per amplifier)
• Wide common-mode and differential voltage ranges
• Low input bias and offset currents
• Common-mode input voltage range includes VCC+
• Output short-circuit protection
• High input impedance: JFET-input stage
• Internal frequency compensation
• Latch-up-free operation
• High slew rate: 3.5 V/μs typical
• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
Applications
• Tablets
• White goods
• Personal electronics
• Computers
Description
The TL06x (TL061, TL062, and TL064) family of industry-standard operational amplifiers (op amps) mirror the TL07x and TL08x family of op amps with lower power consumption. These devices provide outstanding value for cost-sensitive applications, featuring high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and wide temperature operation enable the TL06x devices to be used in rugged and environmentally-demanding applications.
INFORMATION
| Category | | |
| Mfr | | |
| Series | - | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Amplifier Type | | |
| Number of Circuits | 2 | |
| Output Type | - | |
| Slew Rate | 3.5V/µs | |
| Gain Bandwidth Product | 1 MHz | |
| Current - Input Bias | 30 pA | |
| Voltage - Input Offset | 3 mV | |
| Current - Supply | 200µA (x2 Channels) | |
| Current - Output / Channel | 20 mA | |
| Voltage - Supply Span (Min) | 10 V | |
| Voltage - Supply Span (Max) | 30 V | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SOIC | |
| Base Product Number |
