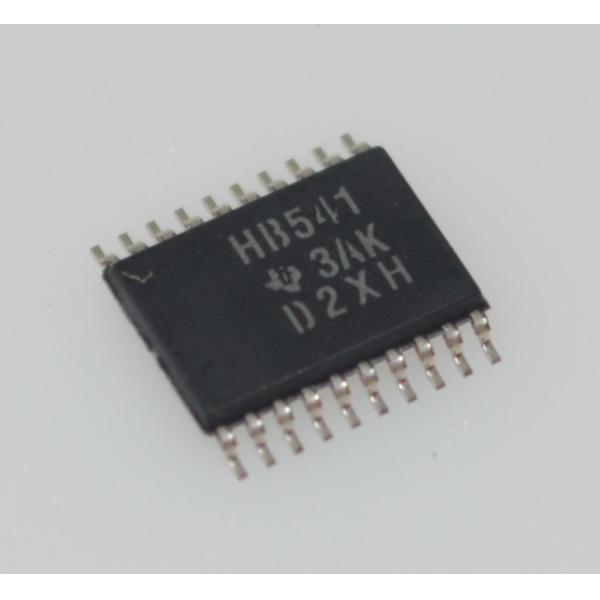

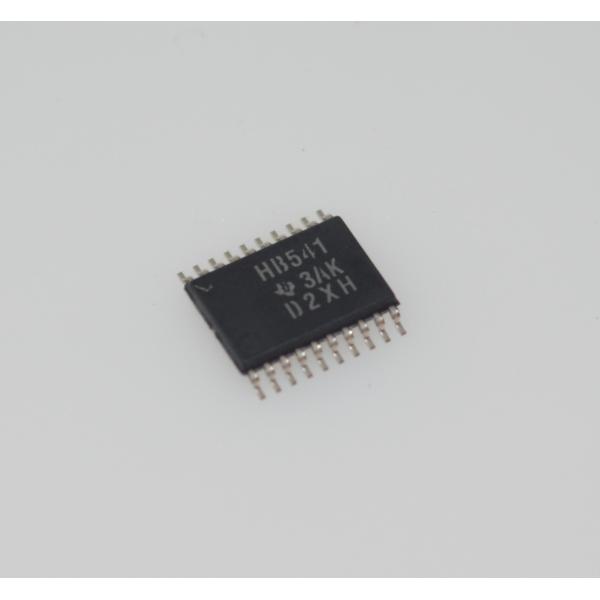

SN74AHCT541PWR 8-Ch 4.5-5.5V AHCT Series Non-Inverting Buffer/Line Driver with 3-State Outputs 24mA Drive Balanced Prop Delay & Industry-Standard Pinout in TSSOP Package
Features
• Inputs are TTL-voltage compatible
• Latch-up performance exceeds 250mA per JESD 17
• ESD protection exceeds JESD 22
– 2000V human-body model (A114-A)
– 1000V charged-device model (C101)
• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
Applications
1:Industrial Control Systems: Driving relays, solenoids, indicator lights, and other loads requiring relatively high current.
2:Automotive Electronics: Used in body control modules, infotainment systems, and other subsystems requiring reliable communication (benefiting from its AEC-Q100 qualification, but the specific grade must be confirmed).
3:Communication Equipment: Used for signal driving and isolation between board cards or chipsets in devices like routers and switches.
4:Test and Measurement Equipment: Serving as part of digital I/O cards to provide stable, controllable digital signals for devices under test.
5:Consumer Electronics: Such as smart home appliances, printers, and any scenario involving an MCU that needs to drive multiple peripheral devices.
Description
The ’AHCT541 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.
INFORMATION
| Category | | |
| Manufacturer | Texas Instruments | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Logic Type | Buffer, Non-Inverting | |
| Number of Elements | 1 | |
| Number of Bits per Element | 8 | |
| Input Type | - | |
| Output Type | 3-State | |
| Current - Output High, Low | 8mA, 8mA | |
| Voltage - Supply | 4.5V ~ 5.5V | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 20-TSSOP | |
| Base Product Number |
