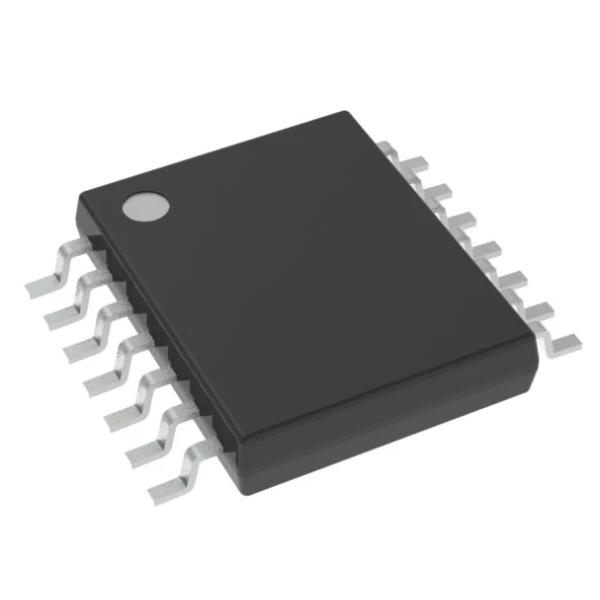

SN74LVC14APWR 6-Channel Schmitt-Trigger Inverter with 1.65-5.5V Wide VCC 10ns Max tp 0.5μA Low ICC ±24mA Output Drive HBM ESD Protection TSSOP-14 Package & -40°C to +125°C Rating
Features
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22
– 2000-V human-body model (A114-A)
– 200-V machine model (A115-A)
– 1000-V charged-device model (C101)
• Operate from 1.65 V to 3.6 V VCC
• Specified from –40°C to +85°C,–40°C to 125°C, and –55°C to 125°C
• Inputs accept voltages to 5.5 V
• Max tpd of 6.4 ns at 3.3 V
• Typical VOLP (output ground bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (output VOH undershoot) >2 V at VCC = 3.3 V, TA = 25°C
• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
Applications
• Barcode scanner
• Cable solutions
• E-books
• Embedded PCs
• Field transmitter: temperature or pressure sensors
• Fingerprint biometrics
• HVAC: heating, ventilating, and air conditioning
• Network attached storage (NAS)
• Server motherboard and PSU
• Software defined radio (SDR)
• TV: High-definition (HDTV), LCD, and digital
• Video communications systems
• Wireless data access cards, headsets, keyboards, mice, and LAN cards
Description
The SN54LVC14A hex Schmitt-trigger inverter is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC14A hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation.
The devices contain six independent inverters and perform the Boolean function Y = A.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V or 5-V system environment.
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Logic Type | | |
| Number of Circuits | 6 | |
| Number of Inputs | 1 | |
| Features | Schmitt Trigger | |
| Voltage - Supply | 1.65V ~ 3.6V | |
| Current - Quiescent (Max) | 1 µA | |
| Current - Output High, Low | 24mA, 24mA | |
| Input Logic Level - Low | 0.15V ~ 0.8V | |
| Input Logic Level - High | 1.3V ~ 2V | |
| Max Propagation Delay @ V, Max CL | 6.2ns @ 3.3V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-TSSOP | |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | |
| Base Product Number |
