Professional 8-Ch ADC AK5358AET 123dB SNR 216kHz/64x FS Ultra-Low -107dB THD+N 71mW Power Integrated HPF/Anti-Aliasing Filter Single 3.3V Supply
andnbsp;
Features
1:Exceptional Sound Quality:
Signal-to-Noise Ratio (SNR): 130 dB (Typ.)
Total Harmonic Distortion + Noise (THD+N): -108 dB (Typ.)
These exceptional key metrics ensure pure audio capture, wide dynamic range, and minimal distortion, delivering high-fidelity sound.
2:High-Resolution Support:
Supports up to 24-bit resolution.
Supports sampling rates up to 192 kHz, meeting high-resolution audio standards.
3:Interface andamp; System Integration:
Features a standard Iandsup2;S serial data output interface, ensuring compatibility with most audio processors, DSPs, and microcontrollers.
Supports both Master and Slave mode operation, offering design flexibility.
4:Excellent Noise Immunity:
Features a High Power Supply Rejection Ratio (PSRR), effectively suppressing noise from the power supply and maintaining stable, superior
performance even in noisy environments.
5:Low Power andamp; Ease of Use:
Operates from a single 5V power supply, simplifying power design.
Low power consumption makes it ideal for portable recording equipment, USB audio interfaces, etc.
Includes a power-down mode for further energy savings.
andnbsp;
Applications
Professional Audio Interfaces
Digital Mixing Consoles
Audio Recording Systems for Camcorders and DSLRs
High-End Consumer Recording Equipment
Automotive Premium Audio Systems
Broadcasting Equipment
andnbsp;
Description
The AK5358AET is a high-performance, low-power, stereo (2-channel) Analog-to-Digital Converter (ADC) designed for professional
and consumer audio applications that demand high sound quality. It utilizes an advanced multi-bit delta-sigma modulation technology
to convert analog audio signals into high-fidelity digital signals.
andnbsp;
INFORMATION
| Category | andnbsp; | |
| Manufacturer | Asahi Kasei Microdevices/AKM | andnbsp; |
| Series | - | andnbsp; |
| Packaging | Tape andamp; Reel (TR) | andnbsp; |
| Part Status | Obsolete | andnbsp; |
| Type | ADC | andnbsp; |
| Number of Channels | 2 | andnbsp; |
| Resolution (Bits) | 24 b | andnbsp; |
| Sampling Rate (Per Second) | 8k ~ 96k | andnbsp; |
| Data Interface | I2S | andnbsp; |
| Voltage Supply Source | Analog and Digital | andnbsp; |
| Voltage - Supply | 2.7V ~ 5.5V, 4.5V ~ 5.5V | andnbsp; |
| Operating Temperature | -20anddeg;C ~ 85anddeg;C | andnbsp; |
| Mounting Type | Surface Mount | andnbsp; |

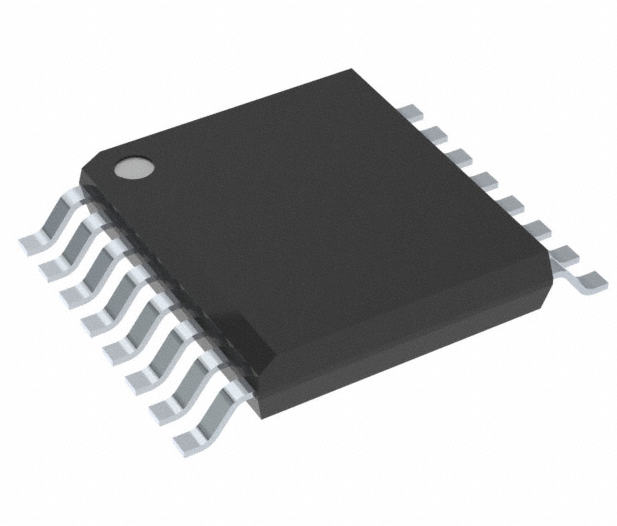

| Package / Case | 16-TSSOP (0.173andquot;, 4.40mm Width) | andnbsp; |
| Supplier Device Package | 16-TSSOP | andnbsp; |
| Base Product Number |
