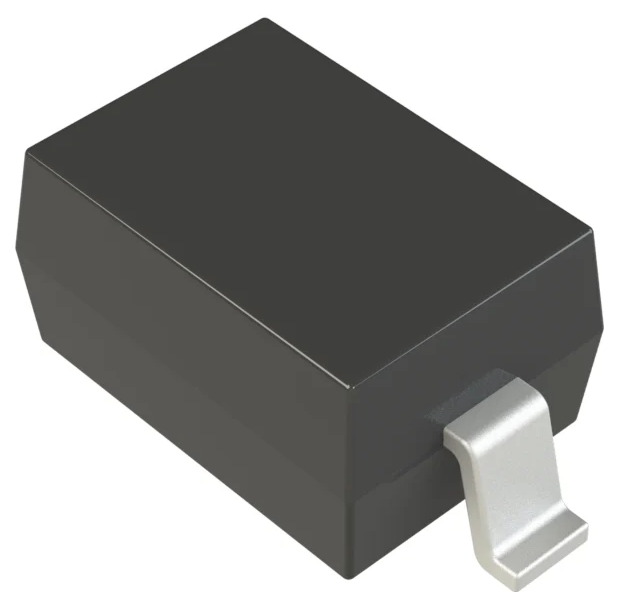

BZT52C3V0-7-F 3.0V 300mW Zener Diode with ±5% Tolerance SOD-123 Package Low Leakage 5mA Test Current Halogen-Free AEC-Q101 Qualified Tape & Reel Packaging
Features
Planar Die Construction
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Qualified to AEC-Q101 Standards for High Reliability
Applications
1:Voltage regulation circuits
2:Overvoltage protection
3:Signal clamping
4:Power supply stabilization
5:Portable electronics
6:Automotive electronic systems
7:General purpose voltage reference
Description
The BZT52C3V0-7-F is a high-reliability Zener diode designed for voltage regulation and protection applications. Encapsulated in a compact SOD-123 surface-mount package, it features precise voltage regulation and low leakage characteristics, making it ideal for precision circuits and portable electronics.
INFORMATION
| Category | | |
| Mfr | | |
| Series | - | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | | |
| Tolerance | ±7% | |
| Power - Max | 500 mW | |
| Impedance (Max) (Zzt) | 95 Ohms | |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V | |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | |
| Operating Temperature | -65°C ~ 150°C | |
| Mounting Type | Surface Mount | |
| Package / Case | | |
| Supplier Device Package | SOD-123 | |
| Base Product Number |
